What Is a DC MCCB and Why Is It Crucial for DC Power Protection?

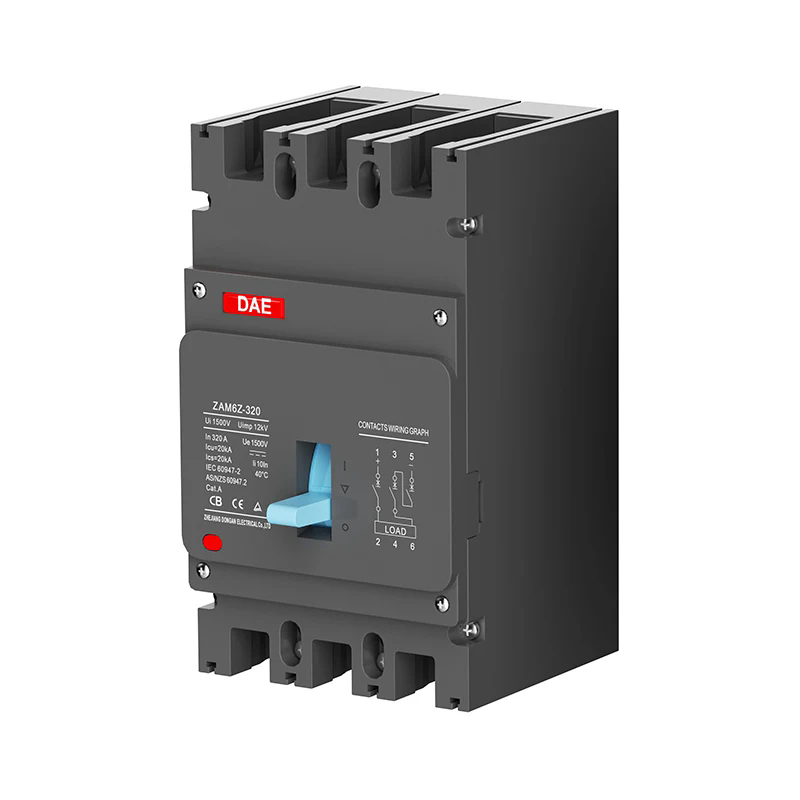

A DC MCCB, or DC Molded Case Circuit Breaker, is an essential electrical protection device used in direct current (DC) circuits. It protects electrical equipment and wiring by automatically cutting off the power in the event of overloads, short circuits, or other electrical faults. DC MCCBs are specifically designed to handle the unique characteristics of DC power, which behaves differently from alternating current (AC) systems.

How Does a DC MCCB Work?

DC MCCBs operate by detecting abnormal current levels. When an overcurrent or fault condition is detected, the breaker “trips” and opens the circuit, stopping the flow of electricity. Unlike AC, which crosses zero voltage multiple times per second, DC flows continuously in one direction, making it harder to interrupt. As a result, DC MCCBs require special arc-extinguishing mechanisms and higher-rated contact systems to safely interrupt the current.

What Are the Key Features of a DC MCCB?

1. High Breaking Capacity

  Designed to safely interrupt high fault currents in DC systems, preventing equipment damage or fire hazards.

2. Wide Voltage Range

  Supports various DC voltages (e.g., 12V, 48V, 125V, 250V, 500V, or even 1000V), suitable for many applications like solar and battery systems.

3. Polarized Design

  Many DC MCCBs are polarized, meaning they must be connected in a specific direction to operate properly.

4. Compact and Modular

  Molded case construction makes them durable and space-saving, often mountable on DIN rails or in panel boards.

Where Are DC MCCBs Used?

Solar Power Systems: To protect solar panel arrays and inverters from faults.

Battery Energy Storage: Ensures safety in large-capacity battery banks.

EV Charging Stations: Provides circuit protection for electric vehicle infrastructure.

Telecom & Data Centers: Protects critical DC power supplies.

Industrial Equipment: Used in DC motor drives and automation systems.

Why Choose a DC-Specific MCCB?

Using an AC breaker in a DC system can be dangerous. DC circuits do not self-extinguish arcs easily, so using a DC-rated MCCB ensures safe and reliable protection. It’s engineered specifically to manage the persistent arcs and continuous flow of direct current.

Conclusion

A DC MCCB is a vital component for ensuring the safety and reliability of any direct current electrical system. Whether used in renewable energy, electric vehicles, or industrial automation, DC MCCBs offer precise, robust, and reliable circuit protection tailored for modern power demands.
