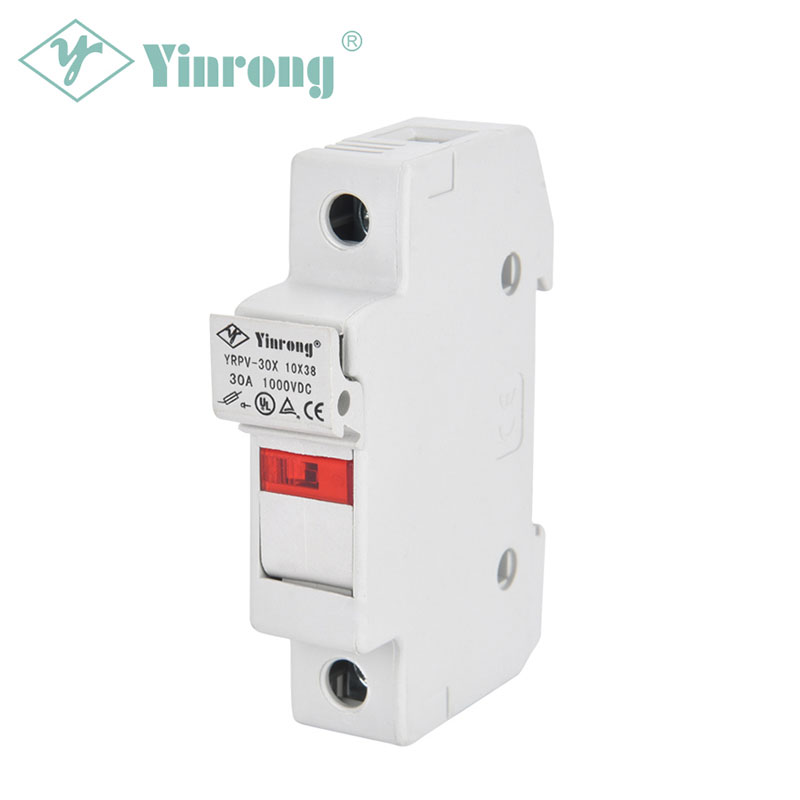

Understanding the 1000VDC Solar PV Fuse Holder: A Critical Component for Solar Power Systems

As solar energy continues to gain traction as a sustainable power source, ensuring the safety and efficiency of solar power systems becomes increasingly important. One of the key components that play a crucial role in protecting these systems is the 1000VDC solar PV fuse holder. In this blog, we will explore what a solar PV fuse holder is, its importance, how it works, and tips for selecting the right one for your solar power setup.

What is a Solar PV Fuse Holder?

A solar PV fuse holder is a device designed to hold fuses used in photovoltaic (PV) systems to protect solar panels and associated electrical components from overcurrent. The 1000VDC rating indicates that the fuse holder is designed to handle direct current (DC) voltages of up to 1000 volts, which is standard in high-voltage solar applications.

Key Features

- Voltage Rating: The 1000VDC rating ensures that the fuse holder can safely operate in high-voltage environments typically found in solar power systems.

- Current Rating: Solar PV fuse holders come in various current ratings to accommodate different system sizes and configurations.

- Durability: Many fuse holders are made from robust materials that can withstand harsh environmental conditions, such as UV exposure, extreme temperatures, and moisture.

Importance of a Solar PV Fuse Holder

1. Overcurrent Protection

The primary function of a fuse holder is to protect the solar power system from overcurrent, which can cause damage to the components, including the solar panels, inverters, and wiring. In the event of a fault, the fuse blows, breaking the circuit and preventing further damage.

2. Safety Compliance

Using a proper fuse holder is essential for complying with safety regulations and standards in the solar industry. It helps ensure that installations meet local codes and guidelines, reducing the risk of electrical fires and equipment failure.

3. System Reliability

By protecting the system from overcurrent conditions, a fuse holder helps maintain the reliability and longevity of solar power systems. This is particularly important for commercial and industrial applications, where downtime can result in significant financial losses.

How Does a Solar PV Fuse Holder Work?

A solar PV fuse holder works by securely holding a fuse that is designed to blow when the current exceeds a specified limit. Here’s a brief overview of its operation:

1. Current Flow: Under normal operating conditions, current flows through the fuse holder and the connected components of the solar power system.

2. Overcurrent Detection: If there is an overload or short circuit, the current exceeds the fuse’s rating.

3. Fuse Activation: The fuse heats up due to the excessive current, causing its internal element to melt and break the circuit.

4. Circuit Interruption: Once the fuse blows, the circuit is interrupted, protecting the downstream components from damage.

Maintenance

While solar PV fuse holders are designed for durability, regular inspection is recommended. Check for signs of wear, corrosion, or damage, and replace fuses as needed to ensure optimal performance and safety.

Choosing the Right 1000VDC Solar PV Fuse Holder

When selecting a solar PV fuse holder for your system, consider the following factors:

1. Voltage and Current Ratings

Ensure that the fuse holder is rated for at least 1000VDC and matches the current requirements of your solar power system. This information can typically be found in the specifications of the solar panels and inverters.

2. Compatibility

Make sure the fuse holder is compatible with the type of fuses you plan to use. Common fuse types include cartridge fuses, blade fuses, and glass fuses, each requiring specific holders.

3. Environmental Rating

Consider the environmental conditions in which the fuse holder will be installed. Look for holders with IP (Ingress Protection) ratings that indicate resistance to moisture, dust, and other elements.

4. Mounting Options

Choose a fuse holder that offers suitable mounting options for your installation. Some holders are designed for panel mounting, while others may be better suited for DIN rail or surface mounting.

Conclusion

The 1000VDC solar PV fuse holder is a vital component in ensuring the safety and efficiency of solar power systems. By providing essential overcurrent protection and enhancing system reliability, it plays a significant role in the overall performance of solar installations.

When selecting a fuse holder, take the time to evaluate your system's specific requirements, including voltage, current, and environmental conditions. Proper installation and regular maintenance will further ensure that your solar power system operates safely and effectively for years to come.
