The Versatility and Reliability of the Circular 5 PIN M16 Connector

In the world of electrical and electronic components, connectors play a vital role in ensuring proper communication between devices and systems. Among the many types of connectors, the Circular 5 PIN M16 Connector stands out for its durability, reliability, and versatility across various industries. Whether you’re involved in industrial automation, automotive systems, or telecommunications, this connector offers a robust solution for connecting electrical circuits in challenging environments.

What is a Circular 5 PIN M16 Connector?

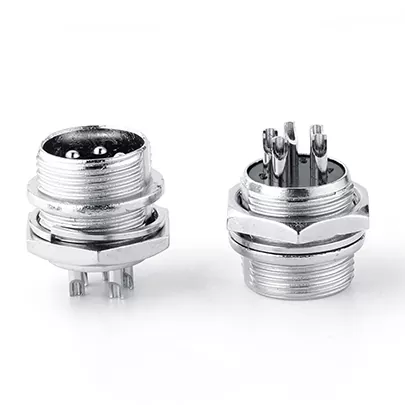

The Circular 5 PIN M16 Connector is a type of electrical connector with a circular design, featuring five pins for transmitting electrical signals or power. The “M16” designation refers to the diameter of the connector, which is 16mm, making it a compact yet powerful option. These connectors are known for their rugged construction, ensuring protection from environmental hazards such as dust, moisture, and vibrations.

Key Features of the Circular 5 PIN M16 Connector

1. Compact Size

Despite its small size, the M16 connector can handle a wide range of electrical connections, making it ideal for applications where space is limited. Its compact nature allows it to fit into tight spaces, while still maintaining excellent performance.

2. Durable Construction

The Circular 5 PIN M16 Connector is built to withstand harsh conditions. Most connectors are made from high-quality materials such as metal or reinforced plastic, providing resistance to corrosion, high temperatures, and physical impact. This durability makes them ideal for industrial and outdoor environments.

3. Secure Connection

Thanks to its circular design and secure locking mechanism, the M16 connector provides a reliable and stable connection, reducing the risk of disconnection due to vibrations or movement. This feature is particularly important in applications such as automotive and industrial machinery where consistent signal transmission is critical.

4. IP-Rated Protection

One of the standout features of the Circular 5 PIN M16 Connector is its IP rating, which defines its level of protection against solids and liquids. Many M16 connectors have an IP67 rating, meaning they are dust-tight and protected against temporary immersion in water. This makes them suitable for outdoor and industrial use, where exposure to moisture and dust is common.

5. Versatile Application

The 5-pin configuration provides flexibility for different types of signals, including power, data, and control signals. The M16 connector is commonly used for transmitting low-voltage signals and is versatile enough to be employed across a wide range of industries.

Common Applications of Circular 5 PIN M16 Connectors

The versatility of the Circular 5 PIN M16 Connector makes it a popular choice in several industries. Some of the key areas where these connectors are commonly used include:

1. Industrial Automation

In the field of industrial automation, reliable communication between machines is essential. M16 connectors are often used to connect sensors, actuators, and control systems, ensuring that complex machinery operates smoothly. Their ability to withstand harsh conditions, such as high temperatures and vibration, makes them a reliable choice for factory floors.

2. Automotive and Transportation

In automotive applications, the Circular 5 PIN M16 Connector is used to connect various electronic systems, such as sensors, lighting, and control units. Its secure connection and durability make it perfect for use in vehicles, where constant movement and exposure to the elements are common. Whether in trucks, buses, or heavy-duty equipment, these connectors provide stable connections under demanding conditions.

3. Telecommunications

The need for fast, reliable data transmission makes the M16 connector a great fit for telecommunications equipment. These connectors are often used in outdoor installations, such as antenna systems and base stations, due to their ability to resist environmental damage and maintain signal integrity.

4. Military and Aerospace

In the military and aerospace sectors, the robustness and reliability of the Circular 5 PIN M16 Connector make it an essential component. It is used to connect various electronic systems in aircraft, drones, and military vehicles, where it must perform under extreme conditions, including high pressure, extreme temperatures, and heavy vibrations.

5. Marine and Offshore

For marine and offshore applications, connectors must be able to withstand moisture, saltwater, and high pressure. The Circular 5 PIN M16 Connector, especially those with IP67 or IP68 ratings, provides excellent protection against these harsh environments. It is commonly used in underwater equipment, boats, and offshore platforms.

Benefits of Using Circular 5 PIN M16 Connectors

1. Enhanced Durability

The rugged construction of these connectors ensures long-lasting performance, even in the most demanding conditions. Their resistance to corrosion, high temperatures, and mechanical stress means fewer replacements and reduced maintenance costs.

2. Improved Safety

With secure locking mechanisms and environmental protection, the Circular 5 PIN M16 Connector minimizes the risk of accidental disconnections or short circuits. This is particularly important in high-stakes environments such as industrial automation or aerospace, where electrical failure can result in costly downtime or even safety hazards.

3. Simple Installation

The circular design of the M16 connector simplifies installation, as the connector can be easily aligned and locked into place. Many M16 connectors feature threaded or bayonet locking mechanisms that ensure a tight and reliable connection with minimal effort.

4. Versatile Configurations

The 5-pin layout provides ample flexibility for transmitting multiple types of signals, including power, data, and control signals. This versatility allows the same connector to be used for a wide range of applications, making it a cost-effective solution for manufacturers.

5. Weatherproof Design

The high IP ratings of the Circular 5 PIN M16 Connectors make them ideal for outdoor and exposed installations. Whether it’s rain, dust, or submersion in water, these connectors offer reliable performance in all weather conditions.

How to Choose the Right Circular 5 PIN M16 Connector

When selecting the right Circular 5 PIN M16 Connector for your application, consider the following factors:

- IP Rating: Ensure the connector offers sufficient protection against environmental elements like dust and water. For outdoor or underwater applications, look for connectors with an IP67 or IP68 rating.

- Material: Choose a connector made from durable materials like stainless steel or reinforced plastic for increased longevity and resistance to corrosion.

- Voltage and Current Rating: Ensure the connector can handle the voltage and current levels required for your application.

- Cable Compatibility: Verify that the connector is compatible with the type and size of cable you’ll be using, whether it's shielded or unshielded cables.

- Locking Mechanism: Opt for a connector with a locking mechanism suited to your environment, such as a threaded or bayonet lock for secure connections in high-vibration areas.

Conclusion

The Circular 5 PIN M16 Connector is a highly versatile and reliable component that excels in challenging environments. Whether you’re working in industrial automation, telecommunications, automotive, or aerospace, these connectors offer secure, durable connections that ensure the seamless transmission of power and data. With their compact size, weatherproof design, and flexible pin configuration, the M16 connector is a must-have solution for modern electrical systems.

If you’re looking to enhance the efficiency and reliability of your electrical connections, investing in high-quality Circular 5 PIN M16 Connectors is a smart choice for long-term performance and durability.
