Segment LCD Display: A Reliable Technology for Visual Communication

In today's world, displays are an integral part of the devices we use daily, from smartphones and appliances to industrial equipment and automotive dashboards. One popular display technology that has been around for decades is the segment LCD (Liquid Crystal Display). Despite the rise of more advanced display technologies, segment LCDs remain a highly effective and reliable choice for many applications. In this blog, we will explore what a segment LCD display is, how it works, and why it continues to be a popular option in various industries.

What is a Segment LCD Display?

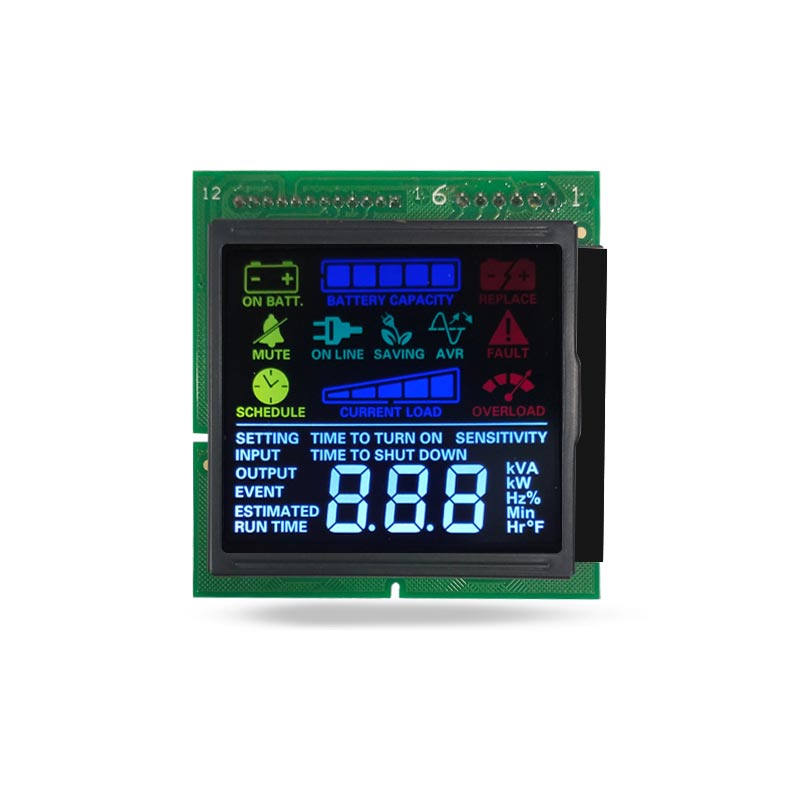

A segment LCD display is a type of screen made up of segments that can be individually activated or deactivated to form characters, numbers, or other shapes. These displays are typically used to show numerical values, text, or simple icons. The most common example of a segment LCD is the digital clock or a calculator screen, where numbers are clearly visible and easy to read.

Segment LCD displays are made up of an array of small liquid crystal cells. Each segment can be controlled to either block or allow light, creating visible shapes and characters. They are commonly referred to as seven-segment displays because they consist of seven individual segments arranged in a figure-eight pattern, which can represent the digits 0 through 9.

How Does a Segment LCD Display Work?

The basic principle behind a segment LCD display is the manipulation of light through the use of liquid crystals. Liquid crystals are materials that have properties between those of liquids and solid crystals. When an electric current is applied to these crystals, they change their alignment, which either blocks or allows light to pass through.

1. Segment Structure: A typical segment LCD display consists of a set of horizontal and vertical segments. Each segment is individually controlled to form the desired character. By turning on or off the appropriate segments, numbers or letters are displayed.

2. Polarization: LCD displays rely on two polarized filters—one at the front and one at the back of the display. The liquid crystal layer lies between these two filters. The light passes through the back filter and interacts with the liquid crystals. Depending on how the liquid crystals are aligned, the light is either blocked or allowed to pass through to the front filter, where it can be seen by the user.

3. Backlighting: Most segment LCDs are reflective, meaning they rely on external light to be visible. However, some LCDs come with a backlight that illuminates the display for better visibility, especially in low-light environments.

Advantages of Segment LCD Displays

Despite the introduction of modern display technologies like OLED and TFT LCD, segment LCD displays offer several unique advantages that make them a preferred choice in certain applications:

1. Low Power Consumption: One of the biggest advantages of segment LCDs is their energy efficiency. Since only the segments that need to be displayed are activated, they consume very little power, making them ideal for battery-powered devices like digital watches, calculators, and remote controls.

2. Cost-Effective: Segment LCD displays are relatively inexpensive to produce compared to other types of displays, such as OLED or full-color LCDs. This makes them a cost-effective option for manufacturers, especially for simple applications like displaying numerical values or basic text.

3. Simplicity: The design of a segment LCD is straightforward and easy to implement. The simple structure and functionality make it ideal for devices that do not require high-resolution or full-color displays.

4. High Visibility: Segment LCD displays are known for their high visibility in a variety of lighting conditions. They can be easily read in both bright sunlight and low-light environments, especially if they are equipped with a backlight.

5. Durability: Segment LCD displays are durable and have a long lifespan. They are resistant to shock and vibration, which makes them suitable for use in industrial and automotive applications, where durability is crucial.

Common Applications of Segment LCD Displays

Segment LCD displays are used in a wide range of applications due to their reliability and ease of use. Some common examples include:

1. Clocks and Timers: Segment LCDs are frequently used in clocks, timers, and stopwatches. Their ability to clearly display numbers makes them perfect for this purpose.

2. Calculators: One of the most well-known uses of segment LCDs is in calculators. The simple display of digits and basic functions makes segment LCDs a logical choice for this type of device.

3. Measurement Instruments: Devices such as thermometers, voltmeters, and other measurement tools often use segment LCDs to display numerical readings clearly and concisely.

4. Automotive Dashboards: Segment LCD displays are commonly used in car dashboards to show essential information like speed, fuel level, and temperature. Their ability to provide clear and concise data is critical for drivers.

5. Home Appliances: Many home appliances, such as microwave ovens, washing machines, and air conditioners, use segment LCDs to display settings, timers, and other relevant information.

6. Medical Equipment: In medical devices, segment LCDs are used to display vital readings, like blood pressure, heart rate, and body temperature. Their reliability and clear readability are crucial in these contexts.

Limitations of Segment LCD Displays

While segment LCDs offer many benefits, they do have some limitations compared to other modern display technologies:

1. Limited Display Capability: Segment LCD displays are best suited for simple alphanumeric displays. They are not ideal for displaying complex images or full-color graphics.

2. Resolution: Segment LCDs have a lower resolution than more advanced display technologies, meaning they cannot display fine details or high-definition content.

3. Limited Viewing Angles: LCD displays, including segment LCDs, often suffer from limited viewing angles. The display may appear dim or distorted when viewed from extreme angles.

4. Limited Color Options: Most segment LCDs only display monochromatic characters (usually in black or green). While backlighting can be added, it is not capable of producing the wide range of colors offered by other display technologies.

Conclusion

Segment LCD displays have been a staple in the world of visual communication for many years. Their simplicity, low power consumption, cost-effectiveness, and high visibility make them an excellent choice for various applications, from household appliances to automotive dashboards and medical devices. While they may not offer the high-resolution graphics or vibrant colors of newer technologies, their reliability and efficiency make them an enduring presence in the world of electronics. As long as simple numeric or alphanumeric displays are needed, the segment LCD display will continue to be a trusted and widely used option.
