Plastic Pipe Machine: Essential Equipment for Modern Pipe Manufacturing

A plastic pipe machine is a specialized piece of industrial equipment used to produce various types of plastic pipes, including those made from PVC, PE, PP, and PPR. These machines are essential in industries such as water supply, drainage, irrigation, gas distribution, and cable protection. With advanced automation and high efficiency, plastic pipe machines offer consistent quality and output for large-scale production.

What Is a Plastic Pipe Machine?

A plastic pipe machine typically refers to a pipe extrusion line that melts raw plastic materials and forms them into continuous lengths of pipe. The machine consists of several integrated components working together to ensure precise shaping, cooling, and cutting of the final product.

Key Components of a Plastic Pipe Machine

1. Extruder

  The heart of the machine. It heats and melts plastic granules using a rotating screw and barrel system.

2. Die Head

  Shapes the molten plastic into a pipe form with a specific diameter and thickness.

3. Vacuum Calibration Tank

  Cools and calibrates the pipe to its exact dimensions using vacuum suction and water spray.

4. Cooling Tank

  Further cools the pipe to stabilize its shape before final processing.

5. Haul-Off Unit

  Pulls the pipe steadily from the extruder at a controlled speed.

6. Cutter or Saw

  Automatically cuts the pipe to pre-set lengths.

7. Stacker or Belling Machine (Optional)

  Stacks the finished pipes or forms socketed ends for connection.

Types of Pipes Produced

PVC Pipes: Used for water supply, sewage, and electrical conduit.

HDPE Pipes: Common in gas and water distribution.

PPR Pipes: Popular for hot and cold water systems.

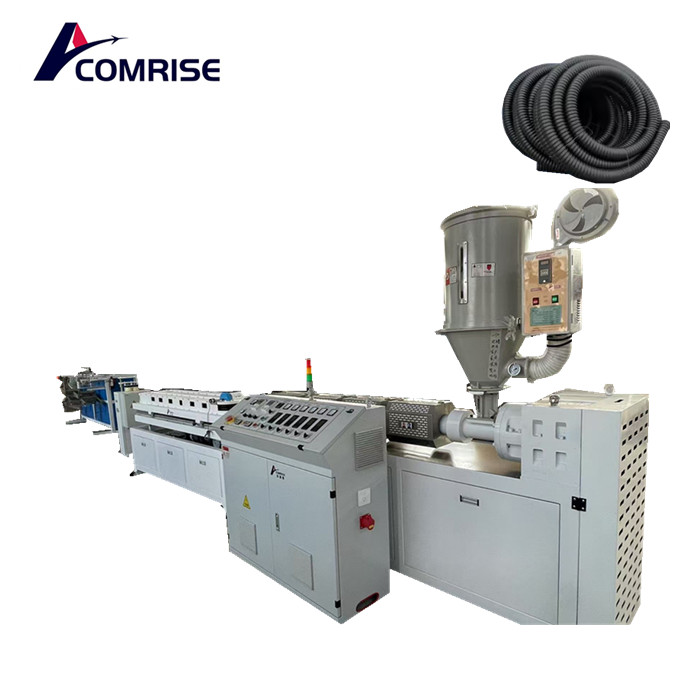

Corrugated Pipes: Ideal for drainage and cable protection.

Advantages of Modern Plastic Pipe Machines

High Automation: Reduces labor and increases consistency.

Energy Efficient: Designed for lower power consumption.

Precise Control: Ensures tight dimensional tolerances and smooth finishes.

Versatility: Can produce pipes in various diameters, wall thicknesses, and materials.

Applications

Construction and Infrastructure

Agriculture Irrigation

Telecommunication and Cable Ducting

Gas and Water Distribution Networks

Wastewater and Drainage Systems

Conclusion

A plastic pipe machine is a critical tool for efficiently producing high-quality pipes used in countless everyday applications. With the right configuration and raw materials, these machines help manufacturers meet growing global demand for durable, cost-effective, and environmentally friendly piping solutions.
