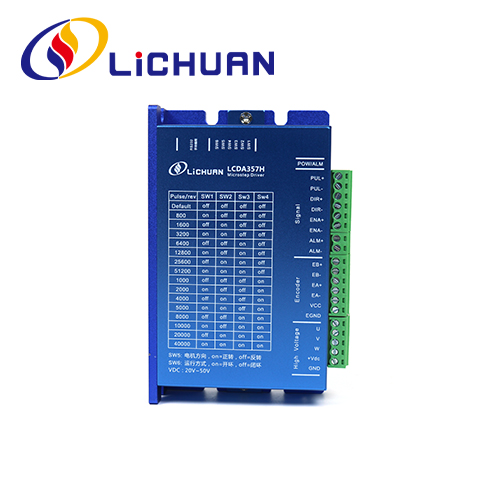

How A Closed Loop Stepper Motor Driver Works

A closed-loop stepper motor driver is a type of motor driver system that incorporates feedback mechanisms to ensure more precise control over the stepper motor's position. Here's an overview of how it works and its key features:

1. Stepper Motor: A stepper motor is a type of brushless DC electric motor that divides a full rotation into a number of equal steps. These motors are commonly used in applications that require precise positioning, such as CNC machines, 3D printers, robotics, and automation systems.

2. Open Loop vs. Closed Loop: In an open-loop stepper motor system, the controller sends step pulses to the motor without any feedback mechanism to verify if the motor actually reached the desired position. This can lead to potential issues such as missed steps or position errors, especially at higher speeds or under varying loads. A closed-loop system, on the other hand, incorporates feedback sensors to monitor the motor's actual position and adjust the control signals accordingly, ensuring more accurate positioning and greater reliability.

3. Feedback Mechanism: Closed-loop stepper motor drivers typically use encoders or other position sensors to provide feedback on the motor's actual position. This feedback is compared to the desired position, and any discrepancies are corrected by adjusting the control signals sent to the motor.

4. Improved Performance: By incorporating feedback, closed-loop stepper motor drivers can compensate for factors such as motor resonance, inertia, and load variations, resulting in smoother motion, faster response times, and more accurate positioning compared to open-loop systems.

5. Dynamic Current Control: Some closed-loop stepper motor drivers feature dynamic current control, which adjusts the motor's current levels based on the load and speed requirements. This helps optimize power consumption and motor efficiency while maintaining torque and performance.

6. Integration with Control Systems: Closed-loop stepper motor drivers can be integrated with various control systems, including microcontrollers, PLCs (Programmable Logic Controllers), and computer-based control software, allowing for seamless integration into larger automation and motion control systems.

7. Application Flexibility: Closed-loop stepper motor drivers are suitable for a wide range of applications that require precise motion control, including CNC machining, laser cutting and engraving, pick-and-place machines, robotic arms, and 3D printing.

Overall, closed-loop stepper motor drivers offer improved performance, accuracy, and reliability compared to traditional open-loop systems, making them well-suited for demanding applications where precise motion control is essential.
