Functions of Hybird Stepper Motor Drivers

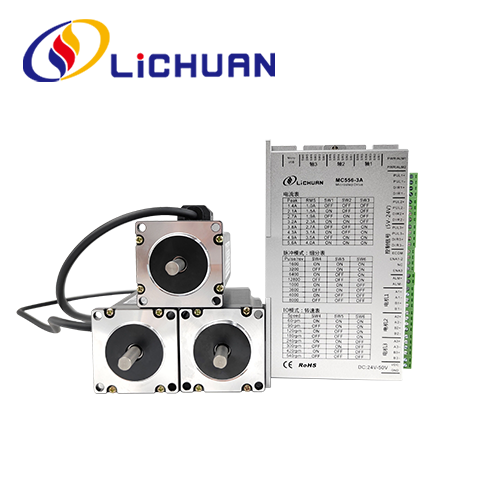

A hybrid stepper motor driver is a specialized electronic device used to control the movement of hybrid stepper motors. Hybrid stepper motors combine the features of both permanent magnet (PM) and variable reluctance (VR) stepper motors, offering high torque, precision, and step resolution. The stepper motor driver provides the necessary power and control signals to accurately position the motor's rotor in response to input commands. Here's an overview of the key features and functions of a hybrid stepper motor driver:

1. Microstepping Control: Hybrid stepper motor drivers typically support microstepping, a technique that divides each full step of the motor into smaller incremental steps. Microstepping improves the motor's resolution, smoothness, and accuracy of motion by reducing step size and minimizing vibration and resonance effects. Common microstepping resolutions include 1/2, 1/4, 1/8, 1/16, and even higher divisions.

2. Pulse and Direction Interface: The stepper motor driver receives control signals in the form of pulses and direction signals from a motion controller or microcontroller. The pulse signal determines the step size and direction of rotation, while the direction signal specifies the direction of motion (clockwise or counterclockwise).

3. Current Control: Hybrid stepper motors require a controlled amount of current to generate torque and move the rotor. The stepper motor driver regulates the current supplied to the motor coils to optimize performance and prevent overheating. Some drivers feature adjustable current settings to accommodate different motor specifications and operating conditions.

4. Acceleration and Deceleration Profiles: Stepper motor drivers often include acceleration and deceleration control features to smoothly ramp up and down the motor speed. This helps reduce mechanical stress, improve positioning accuracy, and minimize vibration and noise during motion.

5. Protection Features: Hybrid stepper motor drivers may incorporate protection features to safeguard the motor and driver electronics from damage. These features may include overcurrent protection, overvoltage protection, thermal shutdown, and short-circuit protection.

6. Communication Interfaces: Some stepper motor drivers support communication interfaces such as UART (Universal Asynchronous Receiver-Transmitter), SPI (Serial Peripheral Interface), or I2C (Inter-Integrated Circuit), allowing them to communicate with external devices such as microcontrollers, PLCs (Programmable Logic Controllers), or industrial computers.

7. Configurability and Tuning: Stepper motor drivers often provide options for configuring operating parameters such as step resolution, current limits, acceleration profiles, and other settings. This allows users to fine-tune the motor's performance to suit specific application requirements.

8. Compact Size and Mounting Options: Hybrid stepper motor drivers are typically compact in size and designed for easy integration into various motion control systems. They may feature mounting holes or brackets for secure attachment to machine frames, control panels, or DIN rails.

Hybrid stepper motor drivers play a crucial role in precision motion control applications across various industries, including robotics, CNC machining, 3D printing, automation, and semiconductor manufacturing. Their advanced features and capabilities enable precise and efficient control of stepper motor-based motion systems.
