Functions of Diesel Injector Nozzle

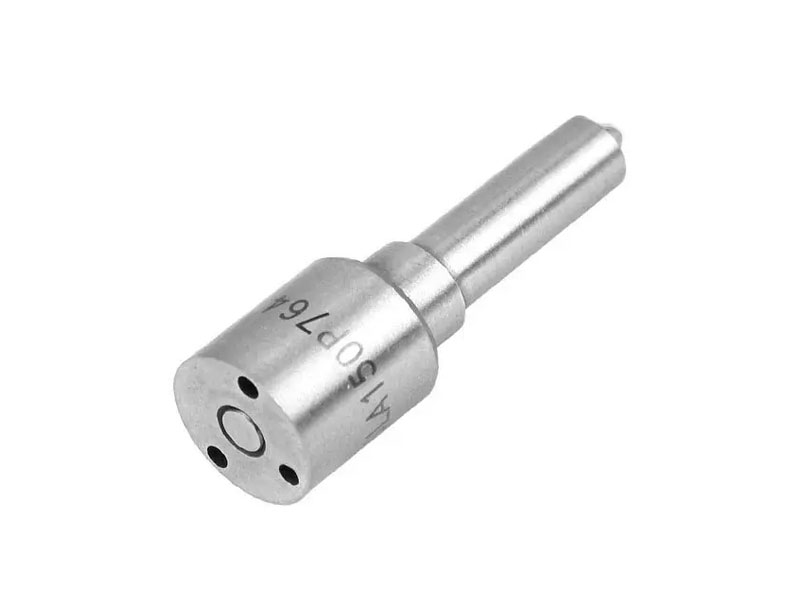

A diesel injector nozzle, also known as a diesel fuel injector nozzle or diesel injector tip, is a critical component of a diesel engine's fuel injection system. It is responsible for delivering precise amounts of atomized fuel into the combustion chamber at the correct time and under high pressure. Here's an overview of diesel injector nozzles, including their functions, components, types, and maintenance considerations:

Functions

1. Fuel Atomization:

  - The diesel injector nozzle atomizes fuel into a fine mist or spray, allowing for efficient combustion within the engine cylinder.

2. Fuel Injection Timing:

  - The injector nozzle controls the timing of fuel injection into the combustion chamber, ensuring that fuel is delivered at the optimal moment for combustion.

3. Fuel Metering:

  - Injector nozzles regulate the flow rate of fuel injected into the cylinder, providing precise control over the fuel-air mixture and engine performance.

4. Spray Pattern:

  - Injector nozzles are designed to produce a specific spray pattern tailored to the engine's combustion requirements, optimizing fuel distribution and combustion efficiency.

Components

1. Nozzle Body:

  - The main body of the injector nozzle, typically made of high-strength materials such as steel or hardened alloys, houses the internal components and provides structural support.

2. Injector Needle:

  - The injector needle, also known as the pintle or valve, controls the flow of fuel through the nozzle. It opens and closes in response to hydraulic pressure from the fuel injection system.

3. Spray Holes:

  - Located at the tip of the injector nozzle, spray holes emit the atomized fuel spray into the combustion chamber. The number, size, and configuration of spray holes influence fuel delivery and spray pattern.

4. Sealing Components:

  - O-rings, seals, and gaskets ensure a tight seal between the injector nozzle and the fuel injector body, preventing fuel leaks and maintaining system integrity.

Types

1. Single-Hole Nozzles:

  - Single-hole nozzles feature a single spray hole for fuel delivery, providing simplicity and reliability. They are commonly used in older diesel engines and low-pressure fuel systems.

2. Multi-Hole Nozzles:

  - Multi-hole nozzles have multiple spray holes arranged in specific patterns to optimize fuel atomization and combustion efficiency. They are used in modern high-pressure common rail (HPCR) fuel injection systems for improved performance and emissions control.

3. VCO Nozzles:

  - Valve-covered or VCO nozzles feature a protective cover over the injector needle, reducing the risk of needle wear and carbon buildup. They are commonly used in heavy-duty diesel engines and high-performance applications.

Maintenance Considerations

1. Regular Inspection:

  - Periodic inspection of injector nozzles for signs of wear, carbon buildup, or damage is essential to ensure proper fuel delivery and engine performance.

2. Cleaning and Decarbonization:

  - Cleaning and decarbonizing injector nozzles using specialized cleaning solutions or ultrasonic cleaning equipment can help maintain optimal fuel spray patterns and combustion efficiency.

3. Replacement:

  - Injector nozzles that are worn, damaged, or leaking should be replaced promptly to prevent fuel leaks, poor engine performance, and potential engine damage.

4. Fuel Quality:

  - Using high-quality diesel fuel and proper fuel filtration systems can help prevent injector nozzle clogging and extend the lifespan of fuel injection components.

Conclusion

Diesel injector nozzles play a crucial role in the fuel injection process of diesel engines, delivering precise amounts of atomized fuel into the combustion chamber for efficient combustion. Understanding the functions, components, types, and maintenance considerations of injector nozzles is essential for ensuring optimal engine performance, fuel efficiency, and reliability in diesel-powered vehicles and equipment. Regular inspection, cleaning, and maintenance of injector nozzles are key to maximizing their lifespan and minimizing the risk of fuel system problems and engine issues.
