Features and applications of fusible resistors

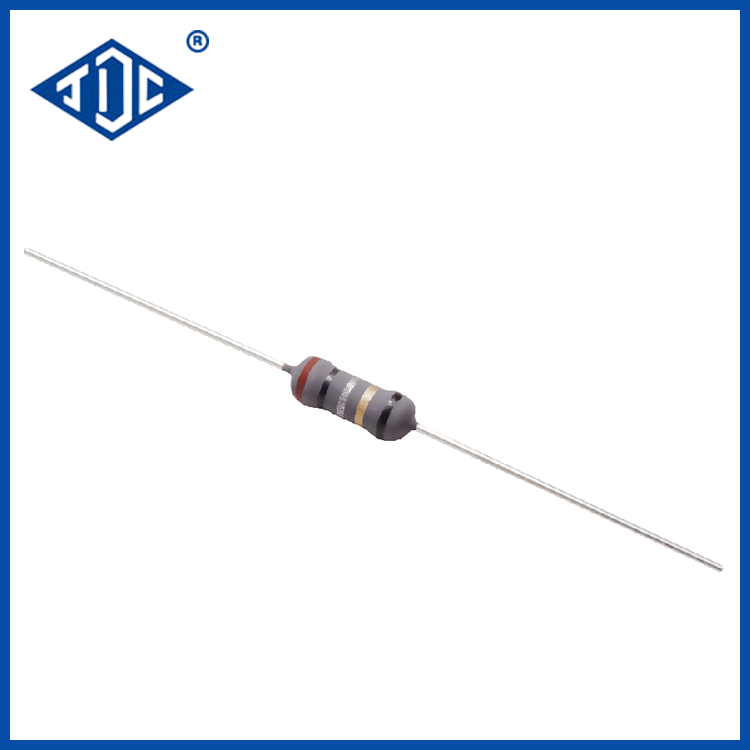

A fusible resistor, also known as a fuse resistor or a safety resistor, is an electronic component designed to provide both resistance and overcurrent protection in an electrical circuit. Fusible resistors are engineered to operate as standard resistors under normal conditions but can act as fuses when exposed to excessive current levels. These resistors offer a combination of resistance and protective capabilities. Here are the key features and applications of fusible resistors:

Key Features:

1. Resistance Function: Fusible resistors provide a specific resistance value, which can be used for current limiting, voltage division, and other purposes like any standard resistor.

2. Fusing Function: The resistors are designed to blow or open like a fuse when subjected to current levels exceeding their rated fusing current. This fusing action disconnects the circuit, protecting other components from overcurrent damage.

3. Fusing Time: Fusible resistors have a specified fusing time, which is the time it takes for them to open the circuit when subjected to excessive current. This time is usually very short to minimize potential damage.

4. Tolerance: Like standard resistors, fusible resistors have a specified tolerance that indicates the range within which the actual resistance may vary from the specified value. Common tolerances are ±1% and ±5%.

5. Rated Power: Fusible resistors have a rated power that indicates the maximum power they can safely dissipate when operating as resistors. This rating is typically given in watts.

6. Temperature Coefficient: They often have a low temperature coefficient, meaning their resistance value changes only slightly with temperature variations.

Applications:

1. Overcurrent Protection: Fusible resistors are primarily used for overcurrent protection in various circuits. When the current exceeds their fusing rating, they blow like a fuse, interrupting the circuit and preventing damage to other components.

2. Power Supplies: They are commonly used in power supplies to provide a level of overcurrent protection to sensitive components or to prevent catastrophic failure in the event of a fault.

3. Motor Control: Fusible resistors are found in motor control circuits to protect against motor overloads and short circuits.

4. Lighting Control: In lighting control systems, they can provide overcurrent protection to prevent damage to lighting elements.

5. Electronic Equipment: Fusible resistors are used in electronic equipment to safeguard against excessive current in various applications, including amplifiers, power management circuits, and instrumentation.

6. Telecommunications: They are utilized in telecommunications equipment to protect against overcurrent conditions that can occur in communication circuits.

Fusible resistors play a dual role in electrical circuits, providing resistance under normal operating conditions and overcurrent protection when needed. Their ability to open quickly in response to excessive current makes them valuable in applications where safeguarding components and preventing damage is essential. When selecting fusible resistors, it's crucial to consider their rated fusing current and fusing time to ensure they offer the appropriate level of protection for a specific circuit.
